    Name:Chocky Bars CB40
    Descriptions:

    Material: Cr white iron and mild steel
    Hardness: >HRC60

    Easy to cut - allowing you to customize the protection to different specifications
    Easy to bend - offers protection on a contoured surface.
    Use chocky bars with pre-notched backing plate.
    Available in 5 sizes - with either standard or pre-notched backing plate.

    Applications:
    Bucket wear strips.
    Replaces hard facing for augers, directional drill heads, foundation drilling, raise bore drilling.
    Fan blade liners.
    Pug mill paddles, tip and scrapers.
    Recycling industry.
    Road planer skids and pick protectors.
    Replaces hard facing for pump housings and impellors

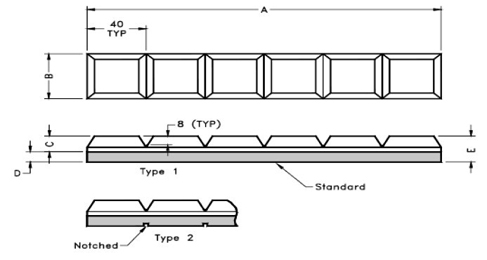

    Part No. A (mm) B (mm) C (mm) D (mm) E (mm) Weight (kg)
    CB25 240 25 15 8 23 0.9
    CB40 240 40 15 8 23 1.5
    CB50 240 50 15 8 23 1.9
    CB65 240 65 15 8 23 2.5
    CB90 240 90 15 8 23 4.2
    CB100 240 100 15 8 23 4.4
    CB130 240 130 15 8 23 5.2
